AUTOMATED HONEYCOMB CORE EXPANSION
MODEL LT-2040 / LT-2060

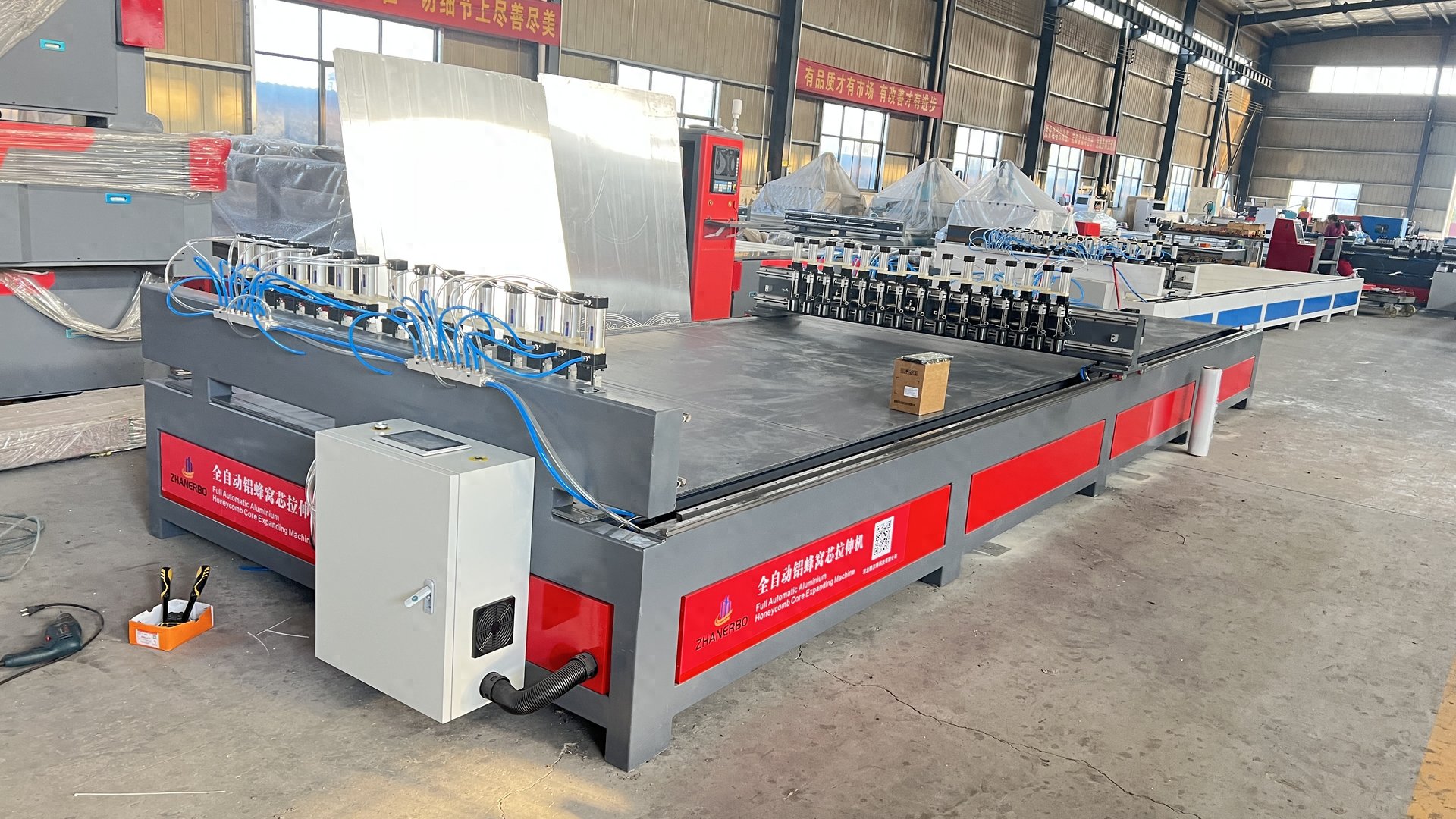

Aluminum Honeycomb Core Expander
Replace manual stretching with consistent, programmable expansion.
PRODUCT OVERVIEW
Built for a repeatable process.
The machine automatically expands aluminum honeycomb core to a preset length, improving repeatability across different core specifications. LT-2040 and LT-2060 models cover different maximum expansion lengths, with mixed-servo and full-servo configurations available.
- Preset finished expansion length
- Automatic pneumatic-pin clamping
- Mixed-servo or full-servo drive options
- LT-2040 and LT-2060 working-length choices
- Inovance PLC control
- Heavy welded rectangular-steel frame
MODEL COMPARISON
Choose the required working length.
| Specification | LT-2040 | LT-2060 |
|---|---|---|
| Maximum expansion length | 4,200 mm | 6,200 mm |
| Maximum length after springback | 3,500 mm | 5,500 mm |
| Overall size | 2,200 × 5,200 × 1,200 mm | 2,200 × 7,200 × 1,200 mm |
| Approximate weight | 1.0 t | 1.2 t |
| Mixed-servo feed / return speed | 0–20 m/min, continuously adjustable | |
| Full-servo feed / return speed | 0–40 m/min, continuously adjustable | |
TECHNICAL DATA
Source specifications.
Final configuration and electrical requirements must be confirmed in the quotation and contract.
- Maximum expansion length (LT-2040 / LT-2060)
- 4,200 / 6,200 mm
- Maximum width before expansion
- 2,000 mm
- Maximum width after expansion
- 1,600 mm
- Maximum core height
- 60 mm
- Pneumatic pins
- 30 pins, 4 mm diameter
- Machine power
- Approx. 3 kW
- Working voltage
- AC 220 V
- Control system
- Inovance PLC
- Y-axis transmission
- Helical rack and pinion
SUITABLE APPLICATIONS
Curtain wall panels
Metal doors
Aluminum furniture
Automotive interior materials
REQUEST A QUOTATION
Ask about the LT-2040 / LT-2060 configuration for your project.
