VACUUM LAMINATION FOR LARGE PANELS
MODEL LT-2560

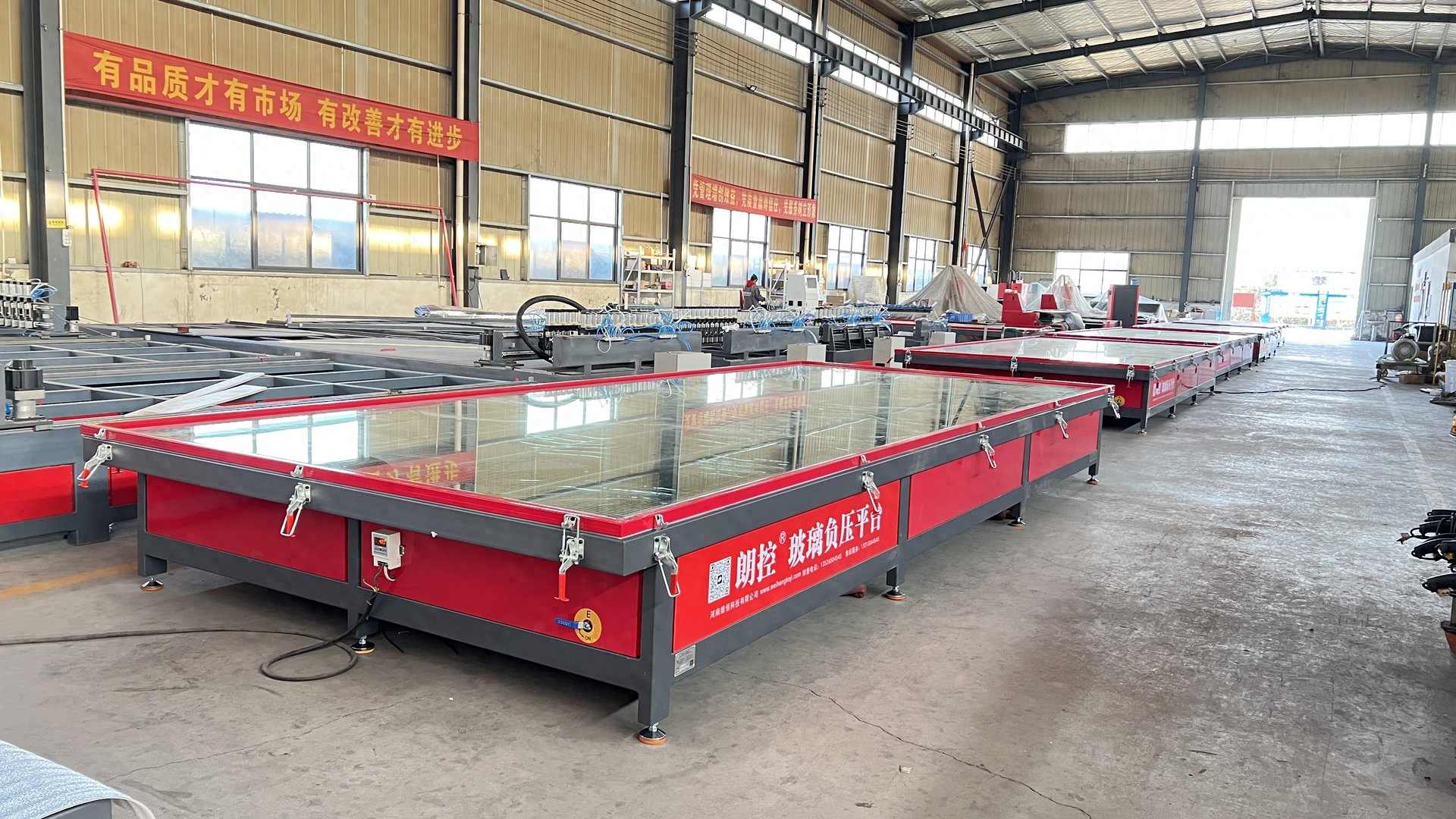

Vacuum Lamination Table for Honeycomb Panels
Stable vacuum pressure and controlled heat for stronger panel bonding.
PRODUCT OVERVIEW
Built for a repeatable process.
LT-2560 is designed for efficient lamination of large honeycomb panels, including conventional flat panels and shaped workpieces. Vacuum pressure brings the panel layers into close contact while the controllable graphene heating system helps shorten adhesive curing time.
- 2,500 × 6,000 mm working surface
- 19 mm tempered glass top
- Graphene heating with adjustable temperature
- Vacuum-bag buckle sealing
- Multiple panels can be stacked for processing
- Adjustable feet for machine leveling
TECHNICAL DATA
Source specifications.
Final configuration and electrical requirements must be confirmed in the quotation and contract.
- Model
- LT-2560
- Glass / heating area
- 2,500 × 6,000 mm
- Tempered glass thickness
- 19 mm
- Graphene heating power
- Approx. 6 kW
- Maximum temperature
- 60°C (45°C recommended)
- Heating supply
- 220 V
- Vacuum pump
- 2.2 kW, automatic start/stop
- Vacuum pump supply
- 380 V
- Vacuum pump capacity
- Supports two platforms
- Vacuum pump size
- 1,300 × 950 × 1,600 mm
SUITABLE APPLICATIONS
Shaped honeycomb panels
Curtain wall panels
Door and furniture panels
Multi-panel lamination
